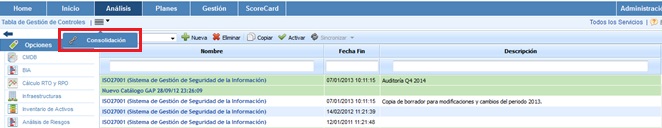

This option allows you to view a summarized version of the different compliance catalogs associated with the entity and sub-entities.
Unknown Attachment
Below, the functionality provided by each of the available tables is detailed.
-
Services Table: Allows the user to filter the catalogs associated with the selected Services.
Unknown Attachment
-
Sub-entities Table: Provides the ability to filter the catalogs defined in the selected sub-entities.
Unknown Attachment
-
Label/Value Table: Allows you to view catalogs that have a specific label associated.
Unknown Attachment
-
Specific Filters: Provides the ability to view compliance catalogs by filtering based on the catalog model once the desired one is selected from the dropdown menu; or filter by the catalog status, whether it is active or not.
Unknown Attachment
The available filters include:
-
Active Catalog: allows you to specify whether to consolidate only active, inactive, or indifferent catalogs.
-
Consolidation Type: defines the level at which the consolidation will be performed.
-
Catalog: allows you to select one or more catalogs on which the consolidation will be performed.
Consolidation Types
The system allows consolidation to be performed in two ways:
Catalog Consolidation
When the consolidation type Catalog is selected, the system will display the existing catalogs in the selected sub-entities, along with the status of each in those sub-entities.
-
If a specific catalog is selected, that catalog will be displayed, indicating its status in each sub-entity.
-
If no catalog is selected, the system will display all available catalogs in the sub-entities included in the consolidation.
This view allows you to quickly compare the implementation status of the same catalog across different entities.
Requirement Consolidation
When the consolidation type Requirement is selected, it is mandatory to select a catalog beforehand.
In this case, the system will display all the requirements of that catalog and the status of each in the selected sub-entities.
This allows you to compare how the same requirement is evaluated in each entity, facilitating the analysis of differences in compliance among sub-entities.

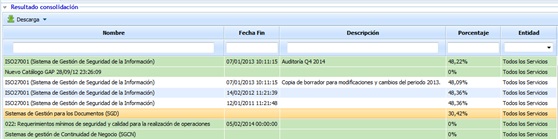

The results are displayed in the lower table 'Consolidation Results'.
Unknown Attachment
The information provided by the table is as follows:
-
Name: Allows you to view the name of the catalog.
-
End Date: Allows you to view the date on which the compliance of the catalog was finalized.
-
Description: Provides a more detailed description of the purpose of the compliance catalog.
-
Percentage: Allows you to view the degree of adequacy/completeness of the compliance catalog.
-
Entity: Provides the ability to view the entity or sub-entity to which the catalog is associated.
